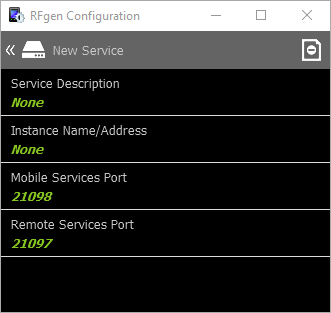

Client Configuration - New Service

New Service is used to setup a connection to a server, or change the ports for a server, or remove the entire server from the profile. The information here (on the client) should match the server name or IP address described in the source Profile stored in the Mobile Development Studio Profiles folder.

Service Description

Enter the server name of the RFgen server.

Instance Name/Address

Instance Name/Address Enter the IP address or unique server name. The Instance Name/Address can be the server's name, address, or a substitute Fully Qualified Domain Name (%FQDN%). This is the server(s) including Load Balancing servers that provide the client profiles and services for the mobile client. The %FQDN% can be used in the event the source application database is moved to a different server and will help resolve the client locate the new Name/Address of the server that now has the application database (including profiles) that client needs in order to work.

Mobile Services Port

Port 21098 is the default port which is used on the client and on the server for communication purposes. If you cannot use the default port, remember to make the port number (id) must be the same on the client and the server.

Remote Services Port

Port 21097 is the default port that a manager or administrator can use to remotely log onto the client if the user on the client needs help. This can be changed, but will also need to changed on the server as well.
